Description of the project



This Web Site is created to facilitate the research in the area of THz/thermal intelligent video surveillance logic programming.

Are you interested in participating in the research? You are welcome!

Here are a brief roadmap and the list of activities that you could participate in.

1. Download the installation pack of the Actor Prolog system from this Web Site and install the Actor Prolog system. Please note that this version of the Actor Prolog system is Windows-based, but some people installed it under Linux successfully. Please note that the installation pack of the Actor Prolog system is simply an EXE file that unpacks and writes to the hard disk a set of files. Besides, it puts into the Windows register the information that the files with the A extension are logic programs. It means that after the installation, one can double click Actor Prolog programs by the mouse and Windows will automatically invoke the Actor Prolog system.

2. After the installation, you will see a set of logic programs in the Examples subdirectory of the home directory of the logic programming system. Please pay attention to the following subdirectories:
    2.1 "For English-speaking students" – this is a collection of simple logic programs that explain the basic syntax features of Actor Prolog. In short, Actor Prolog implements some core ideas of old-fashion Turbo/PDC Prolog. If you are familiar with these Prolog systems, you will enjoy the DOMAINS and PREDICATES declarations in the logic programs.
    2.2. "Predefined classes" – this is a set of short logic programs that explain various predicates of built-in classes of Actor Prolog.
    2.3. "Demo programs" – this is a collection of useful logic programs including the programs for THz video data processing.
Actually, you need logic programs from the "Demo programs/Multimedia" subdirectory:

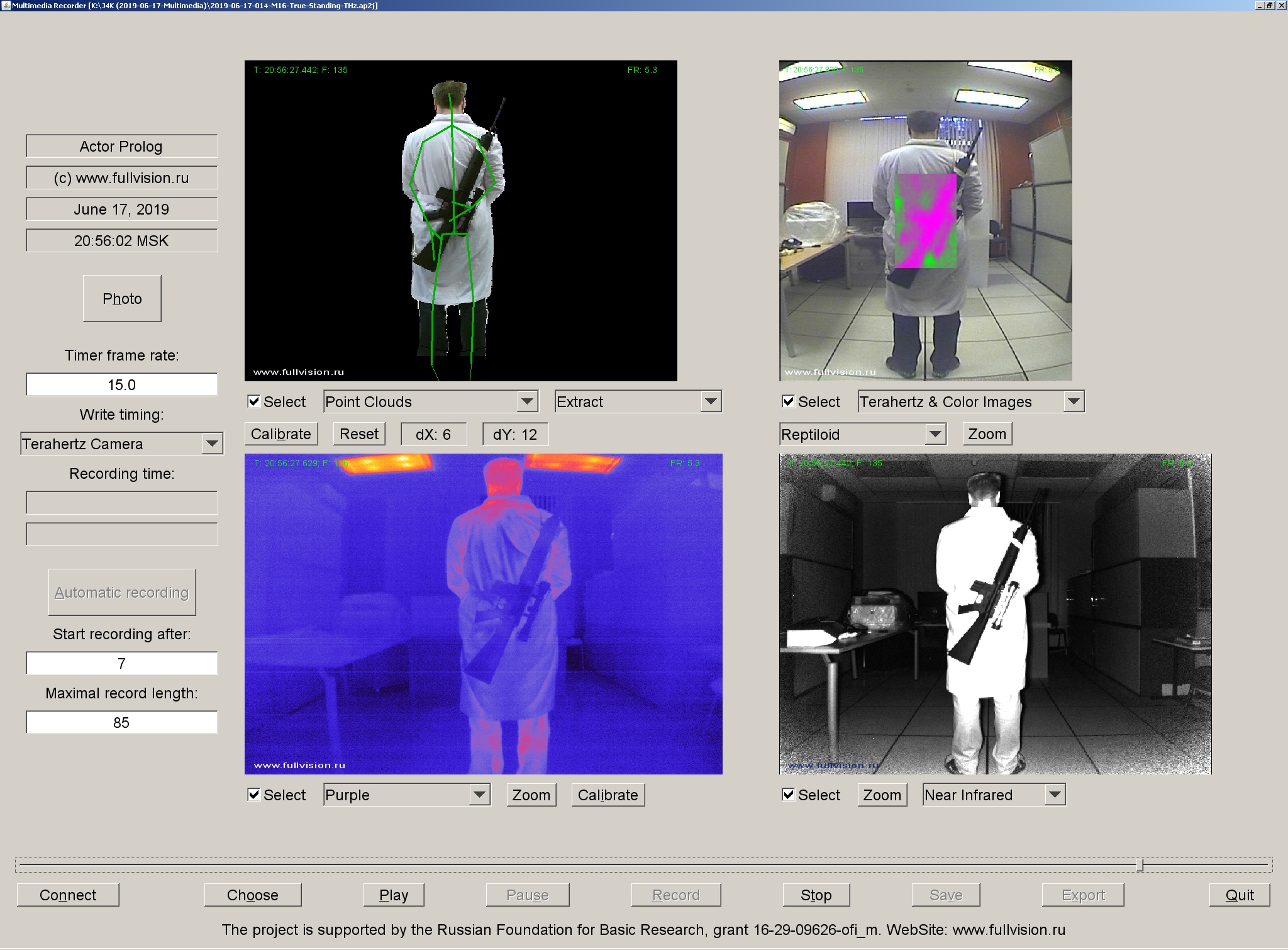

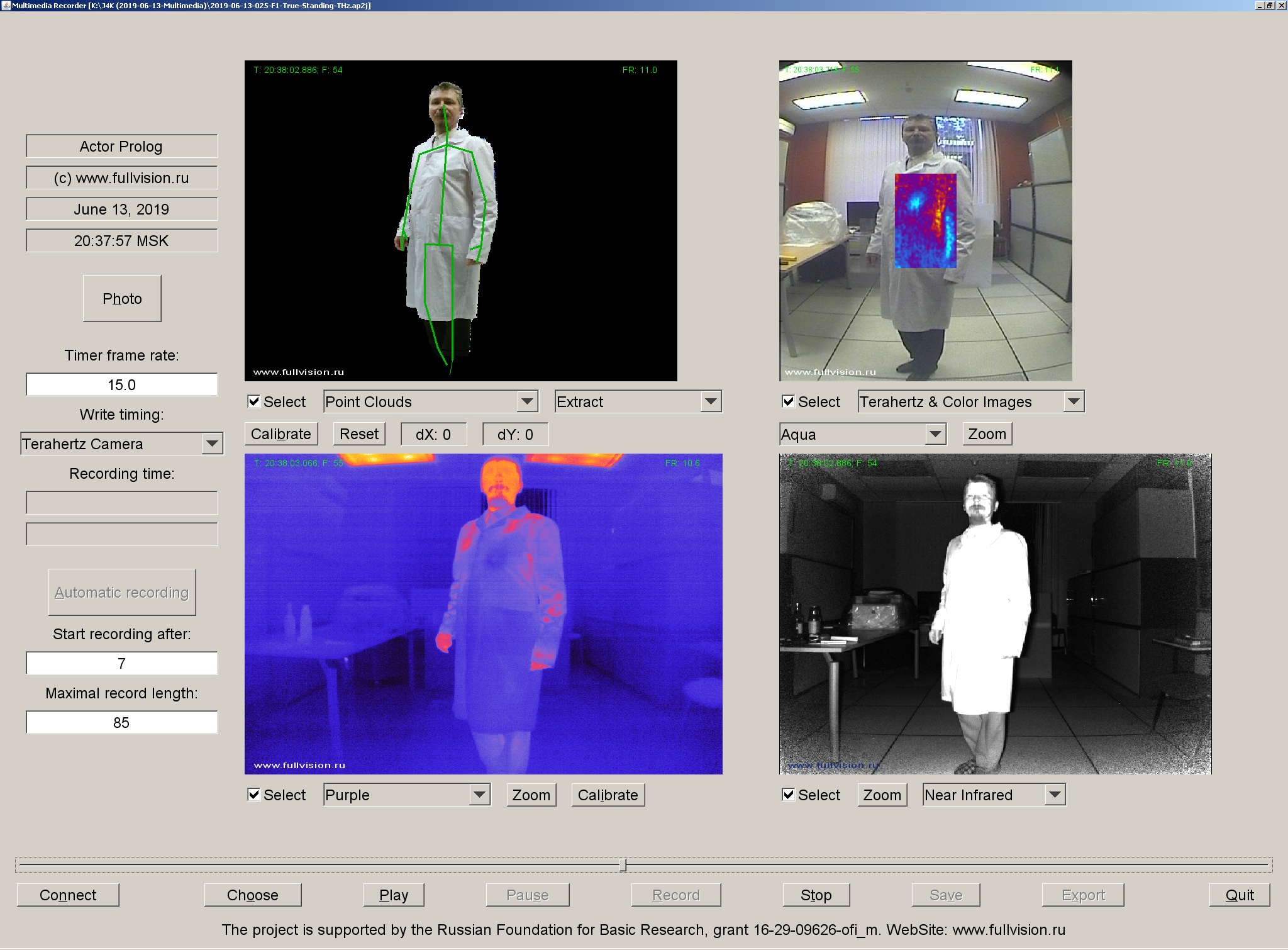

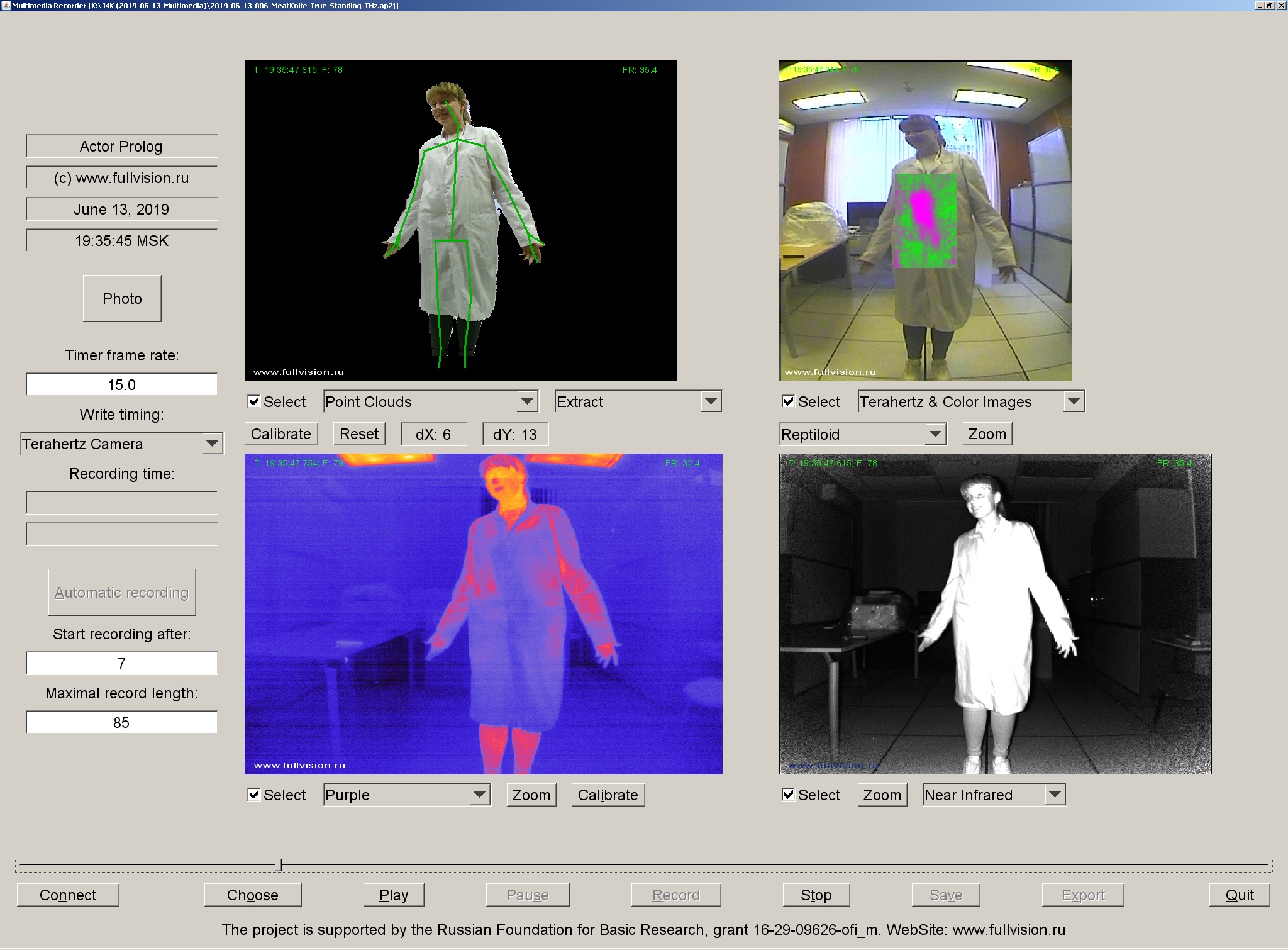

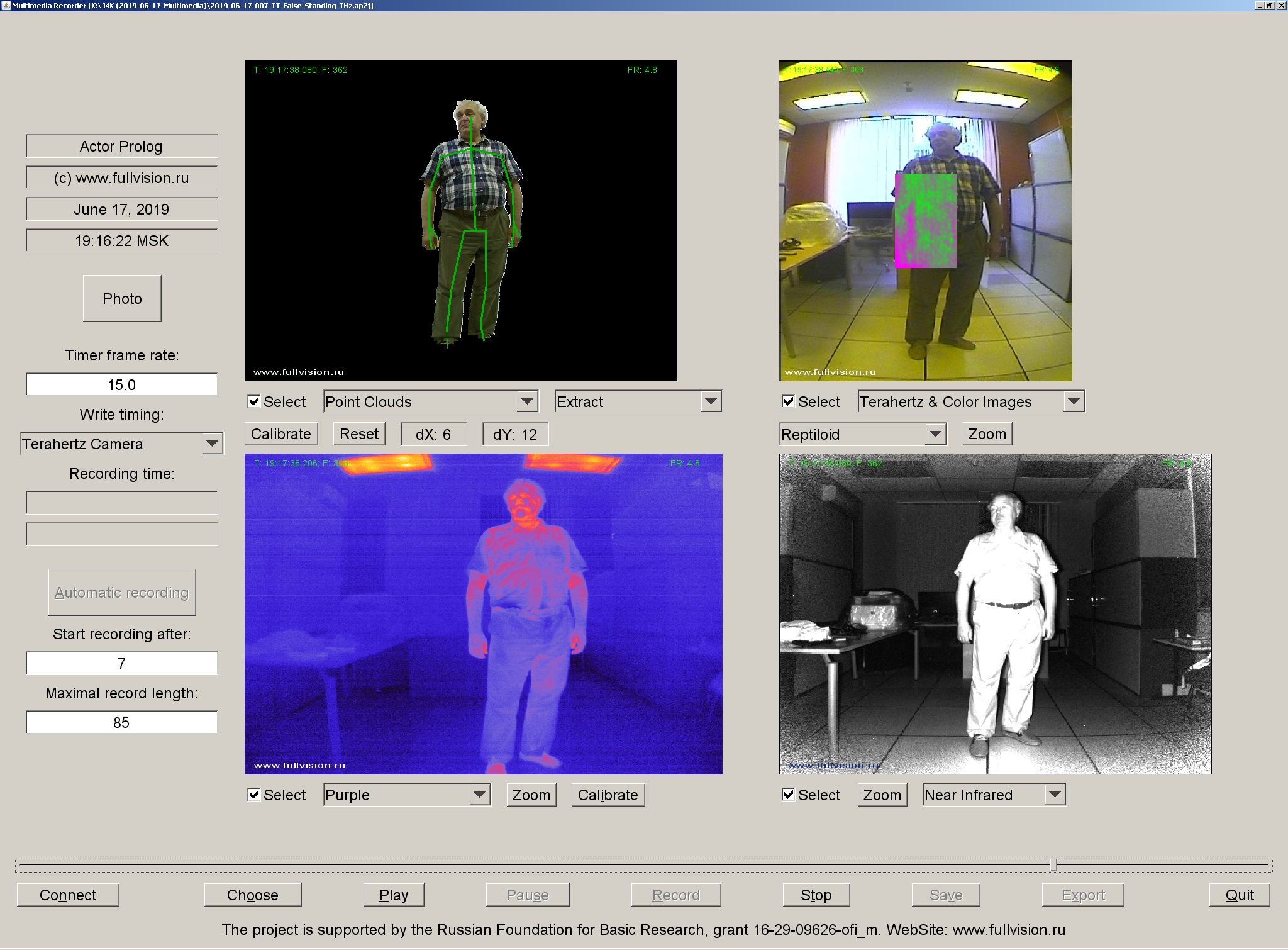

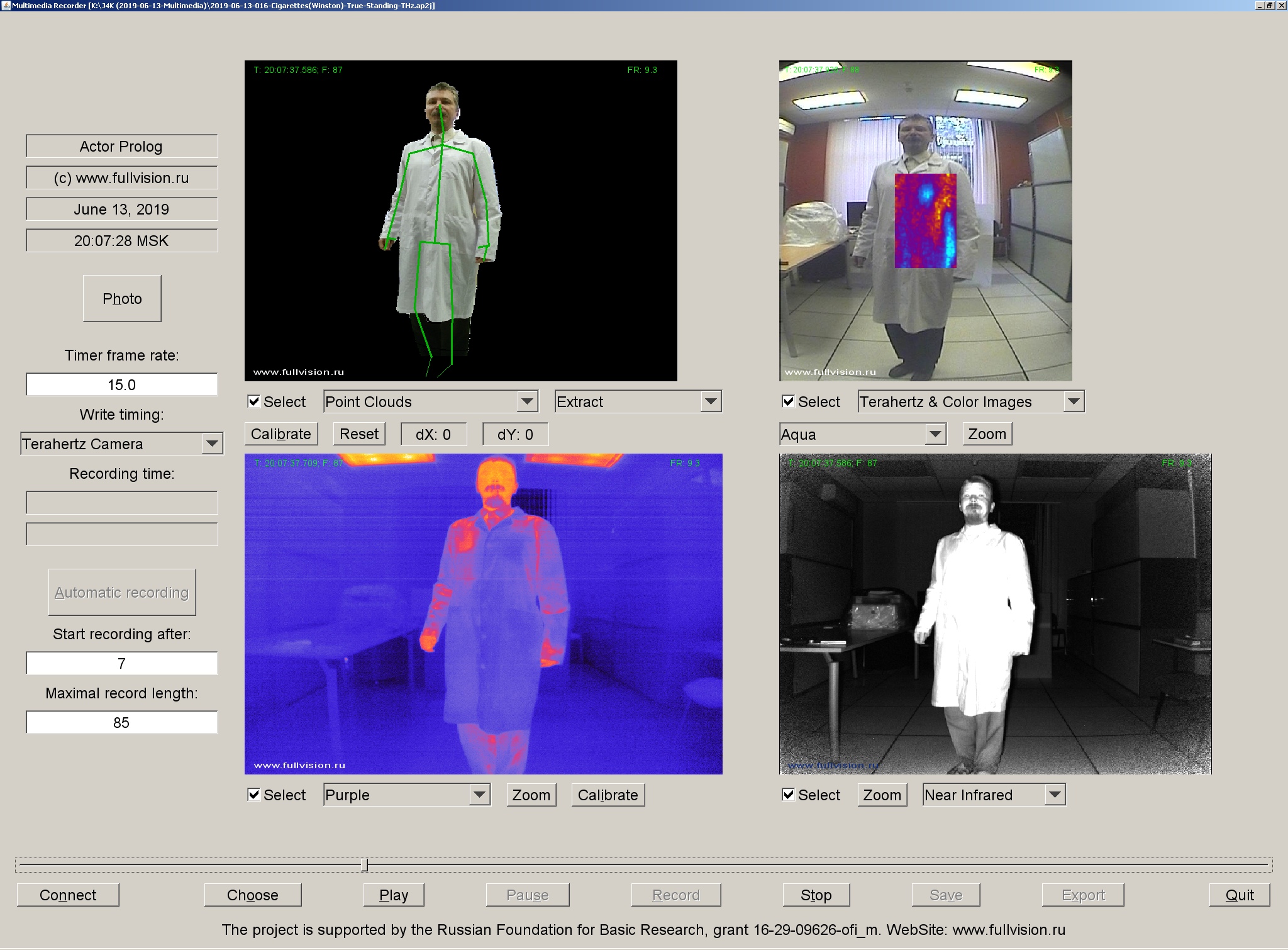

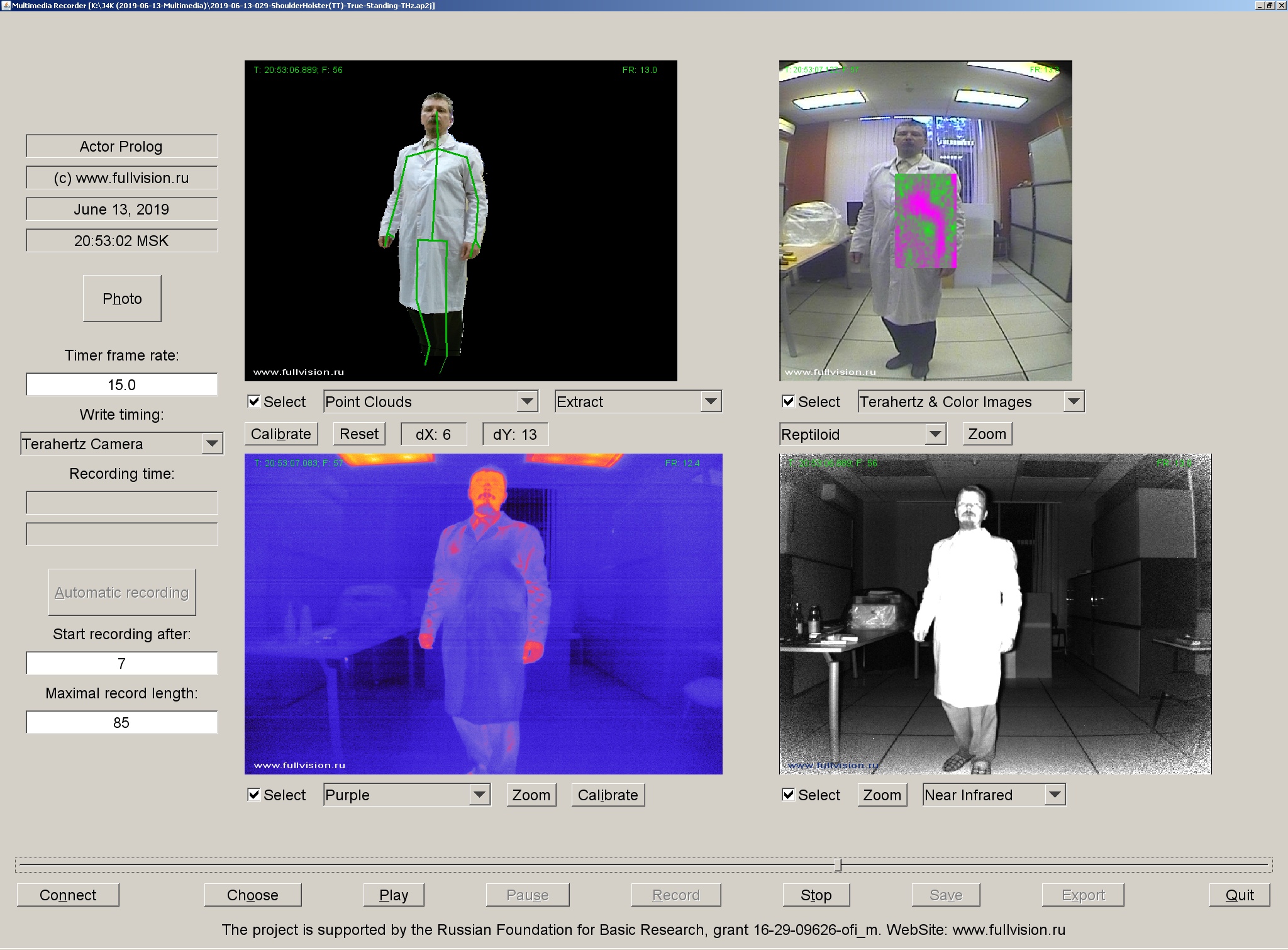

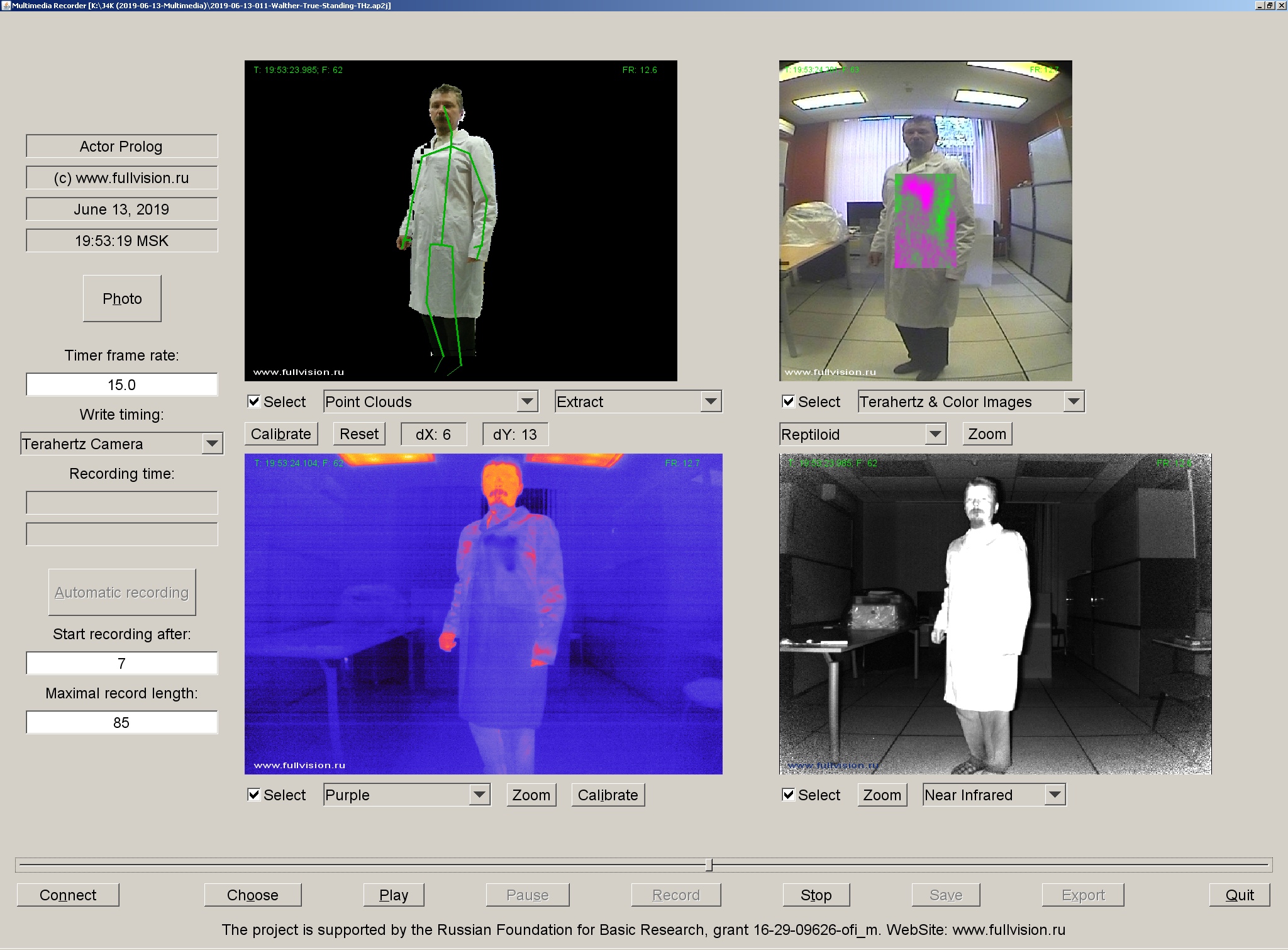

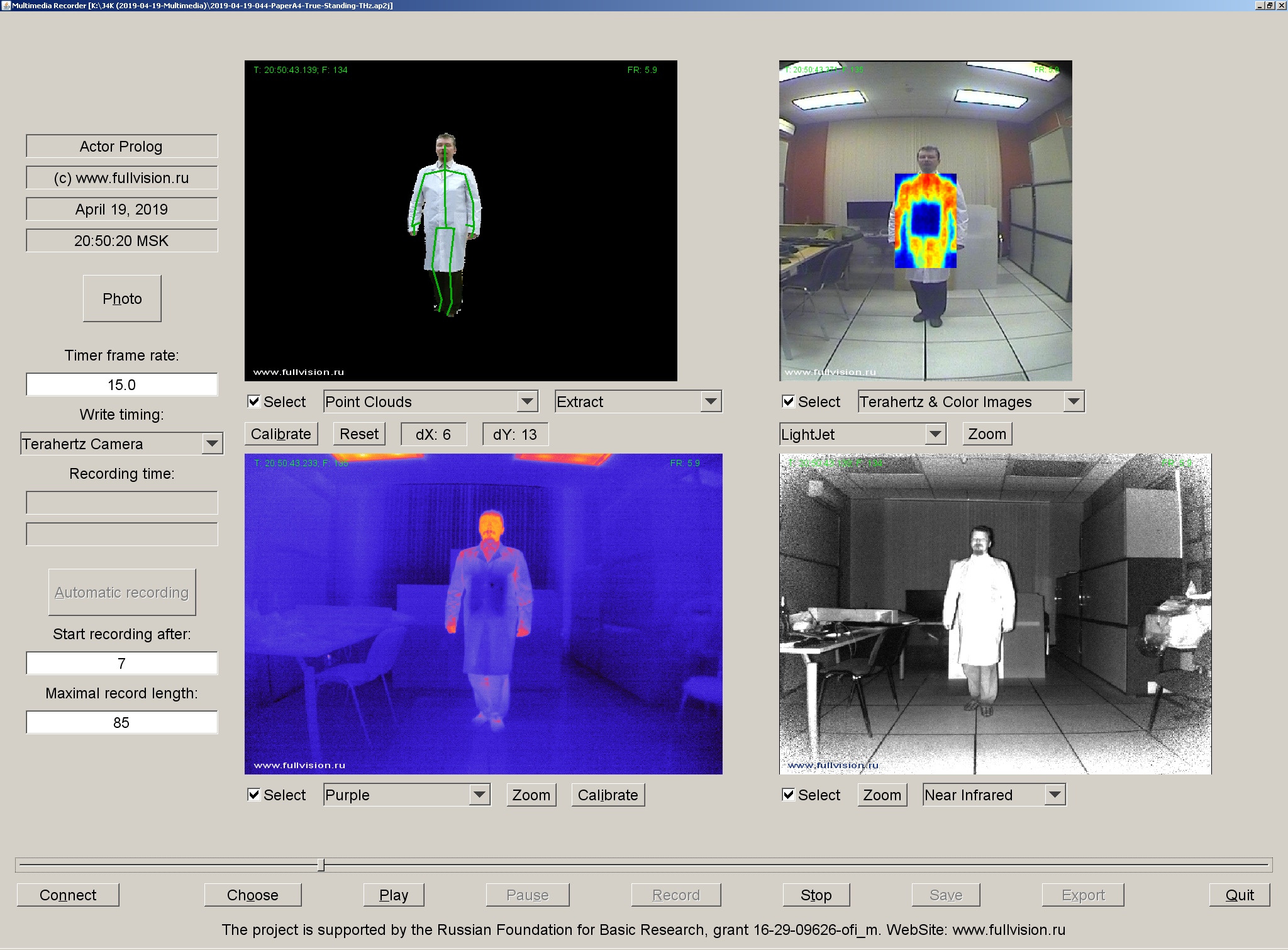

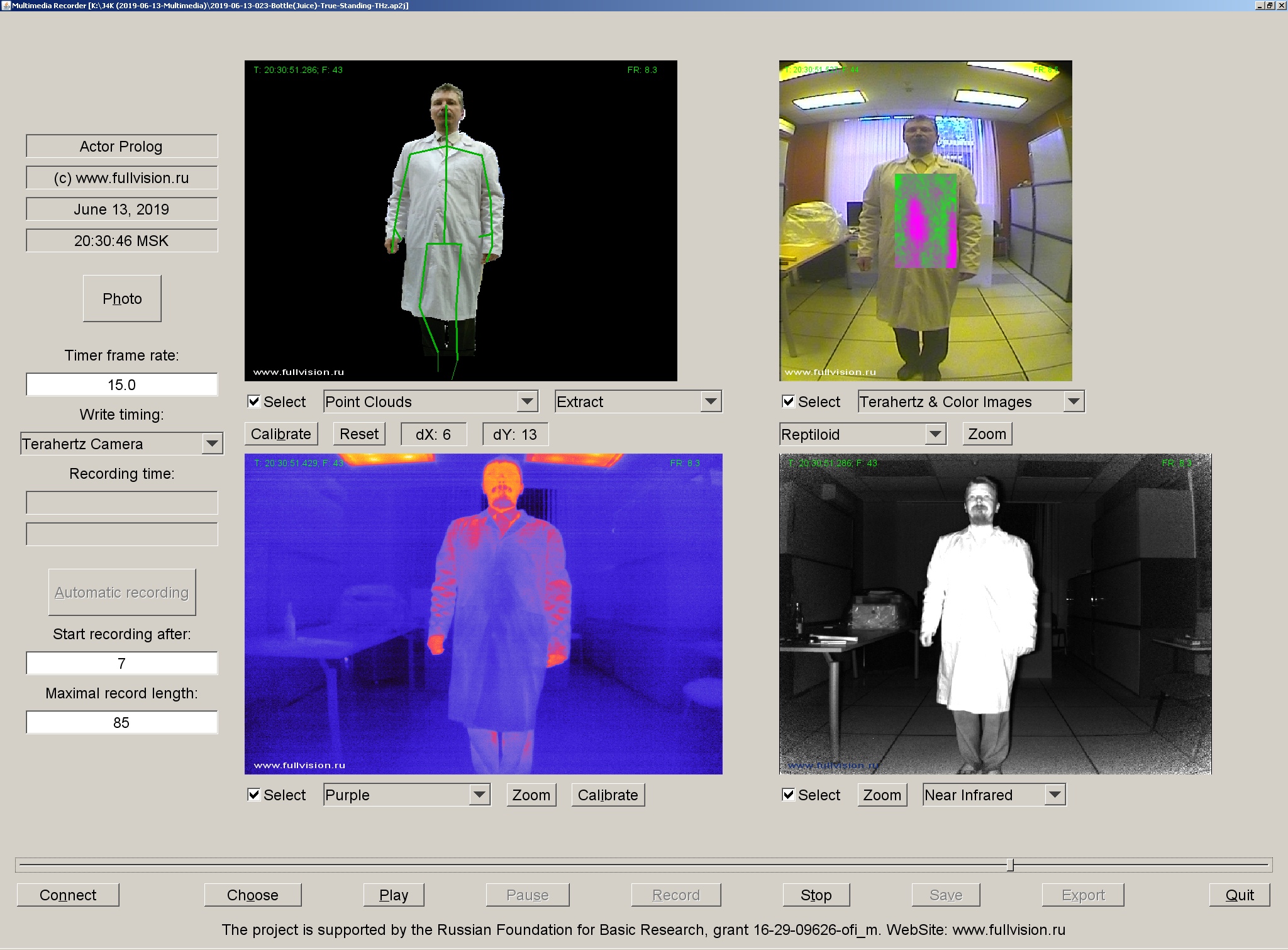

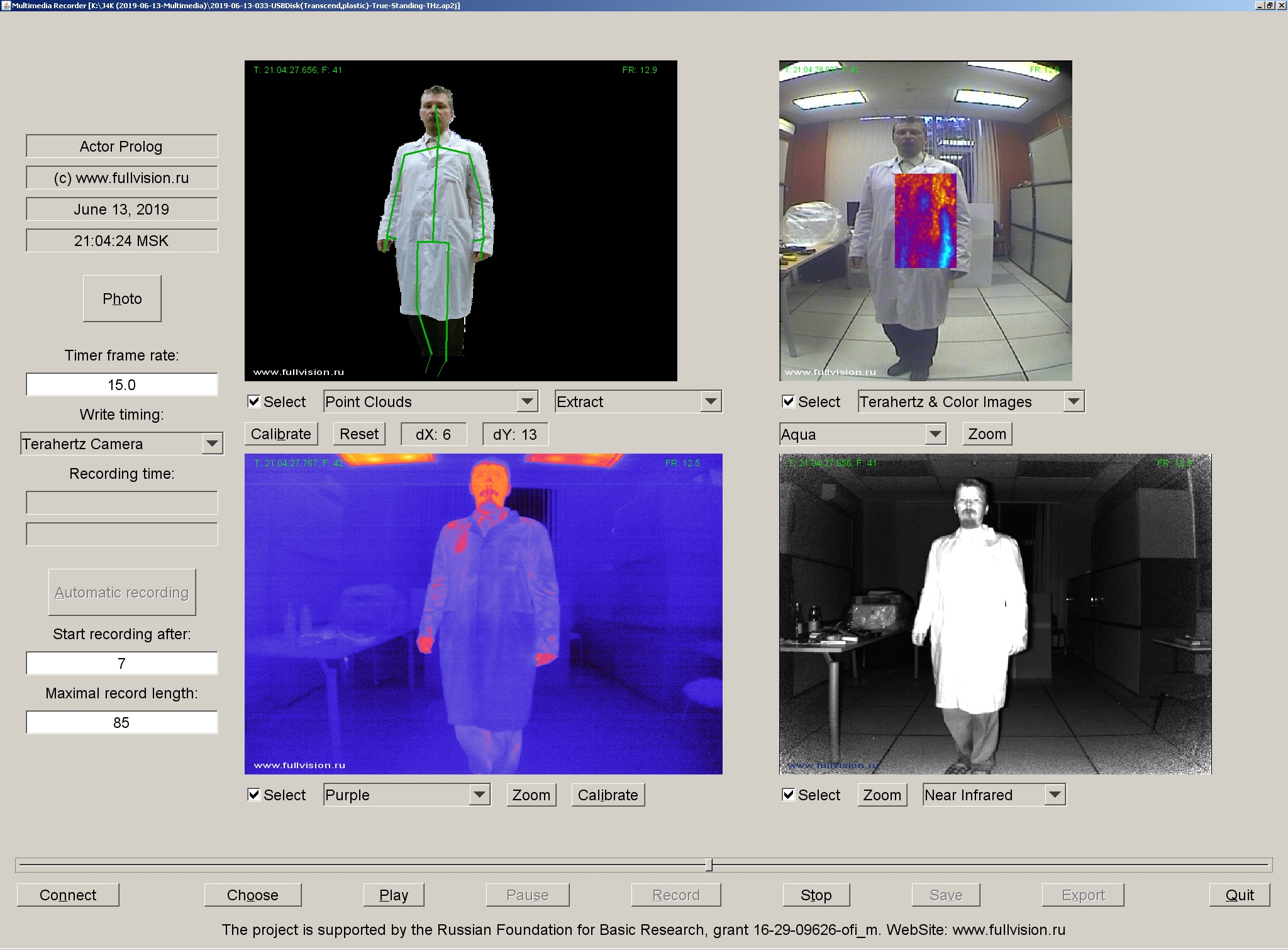

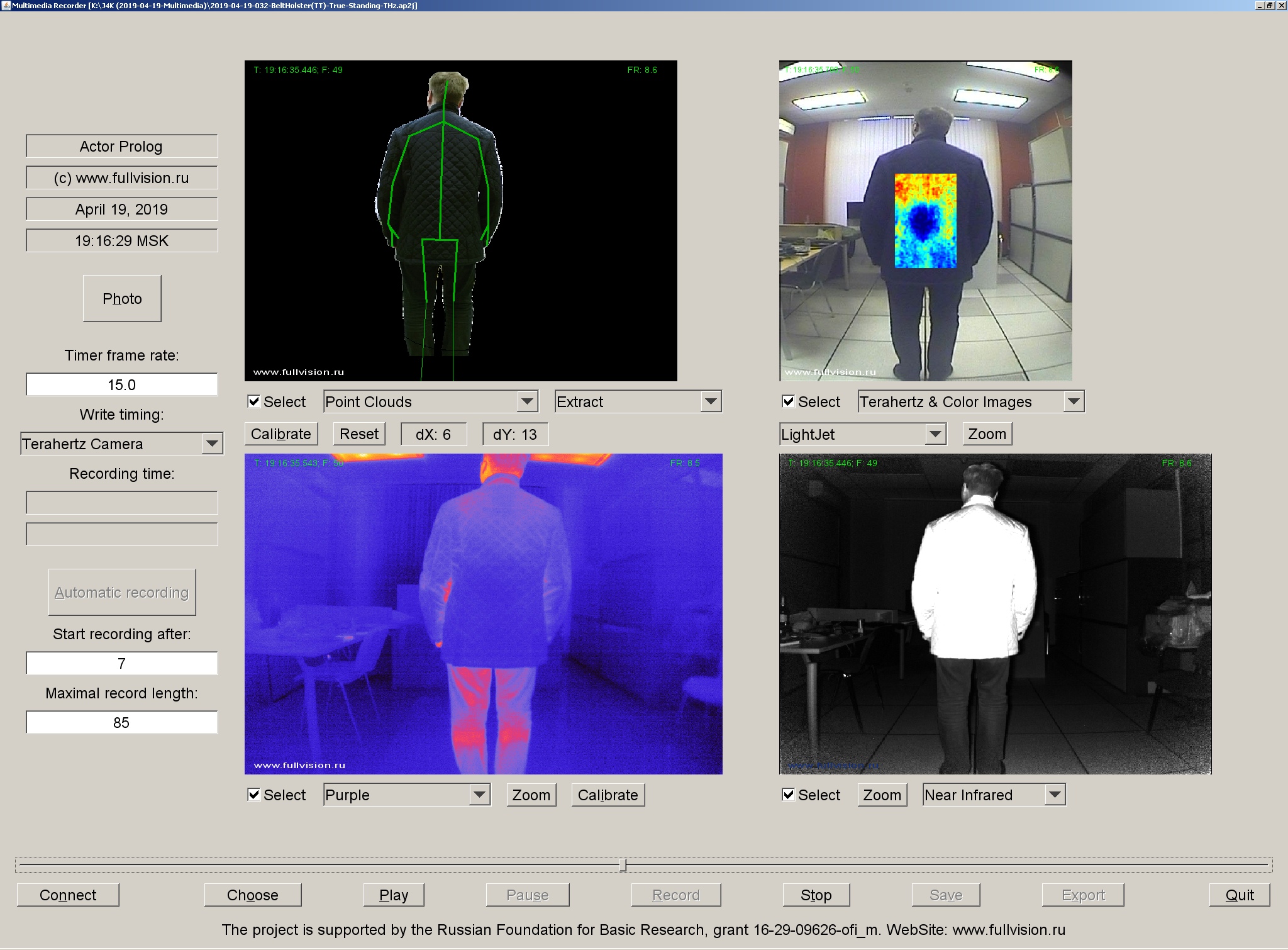

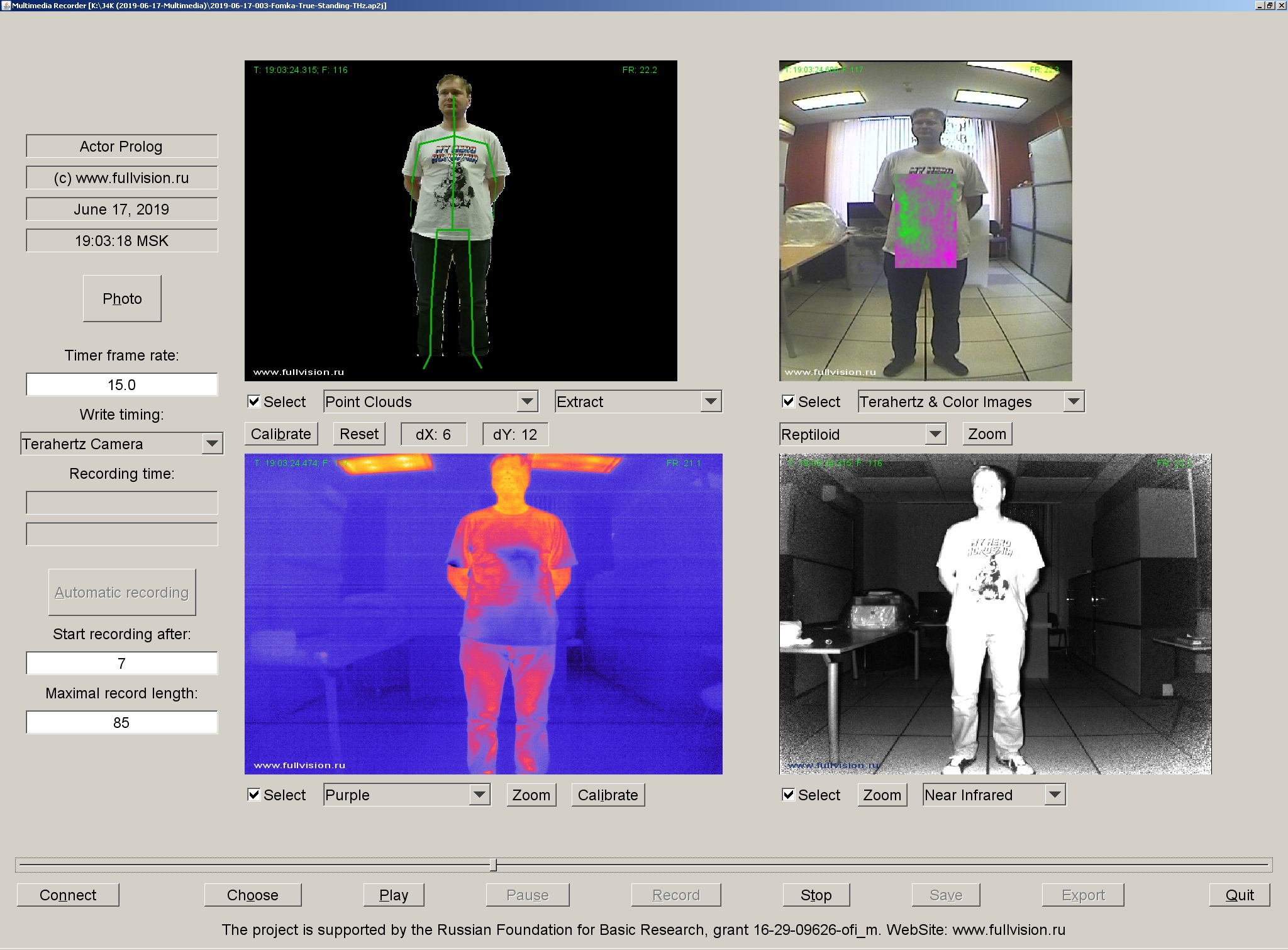

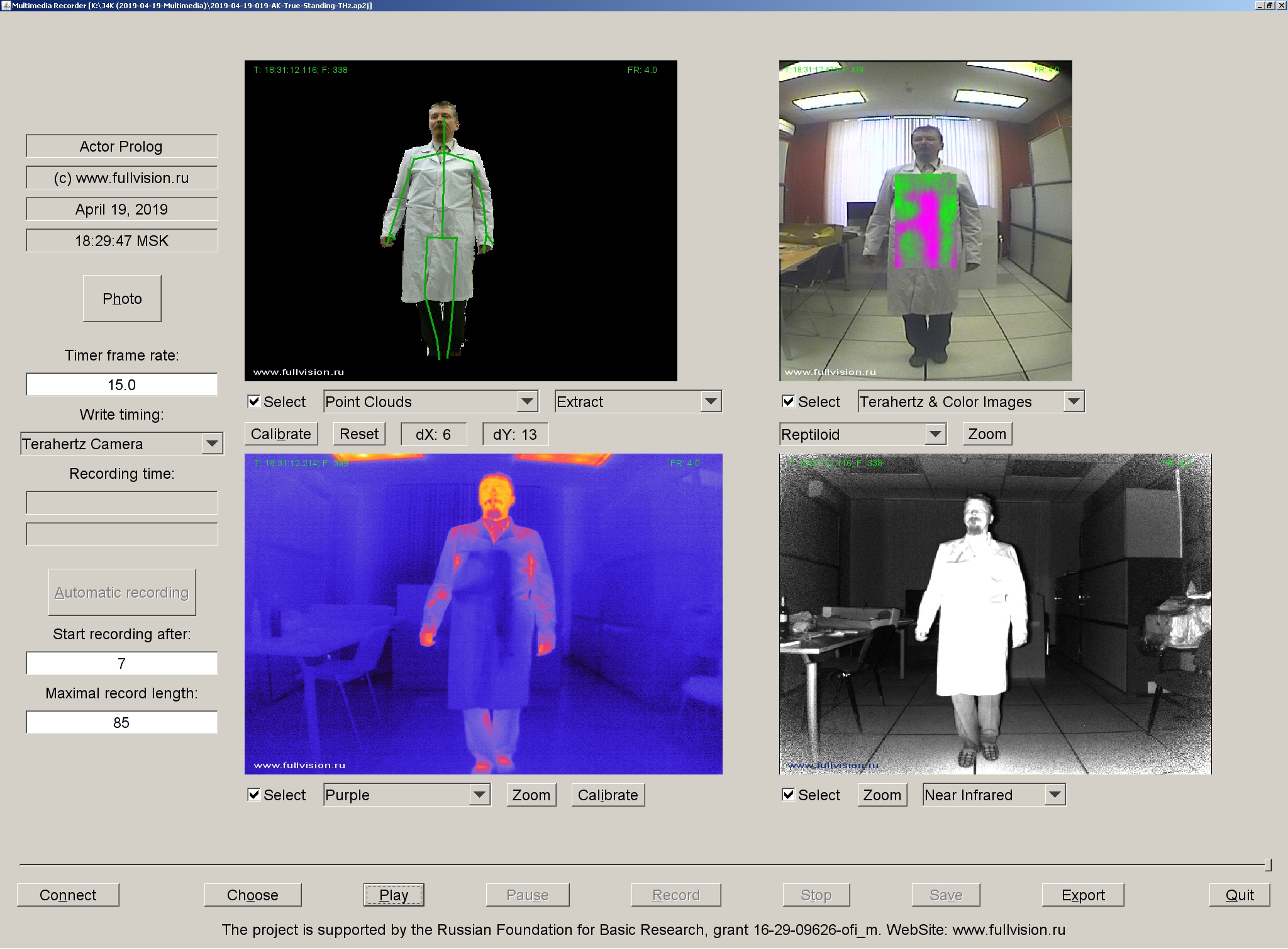

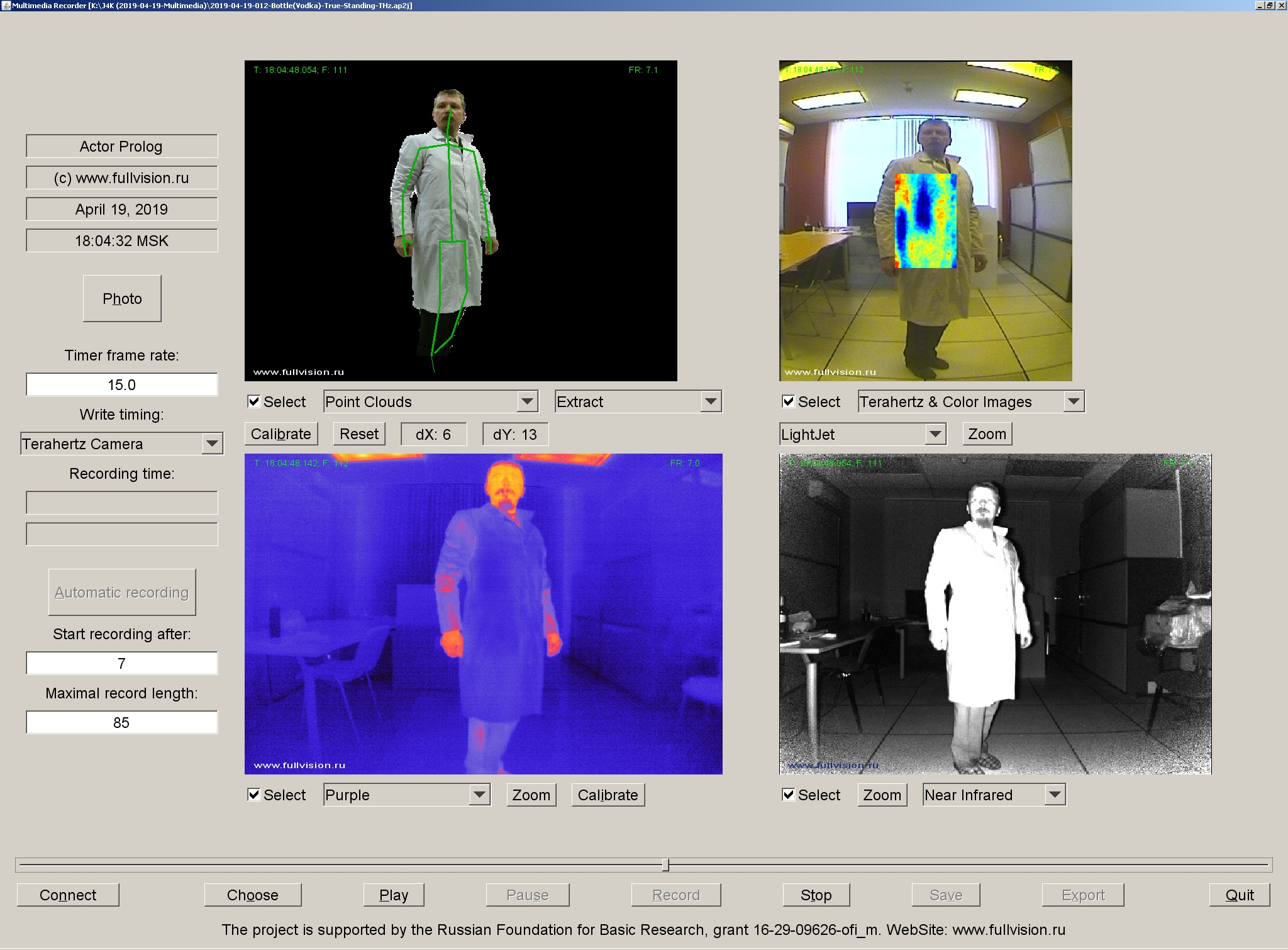

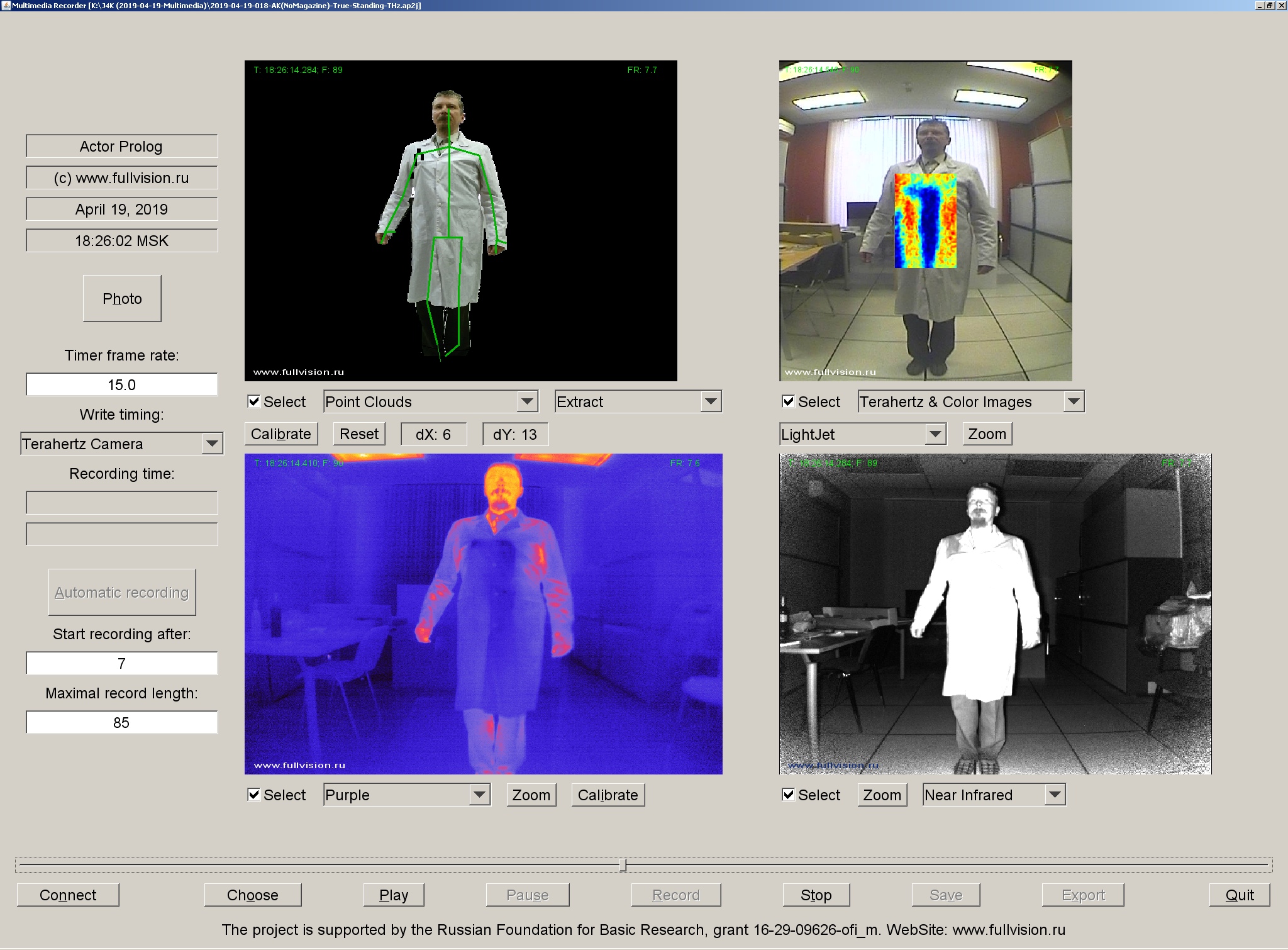

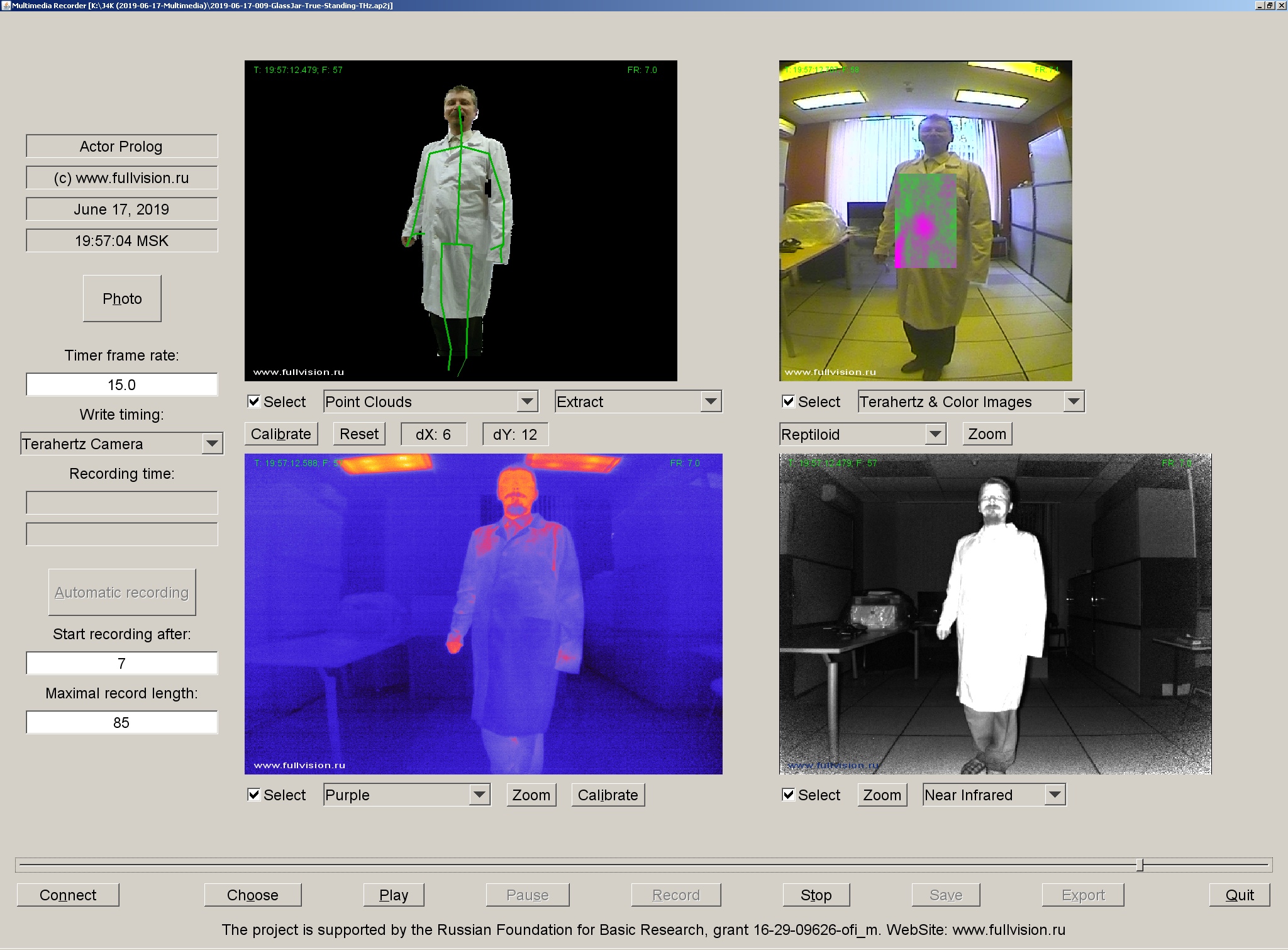

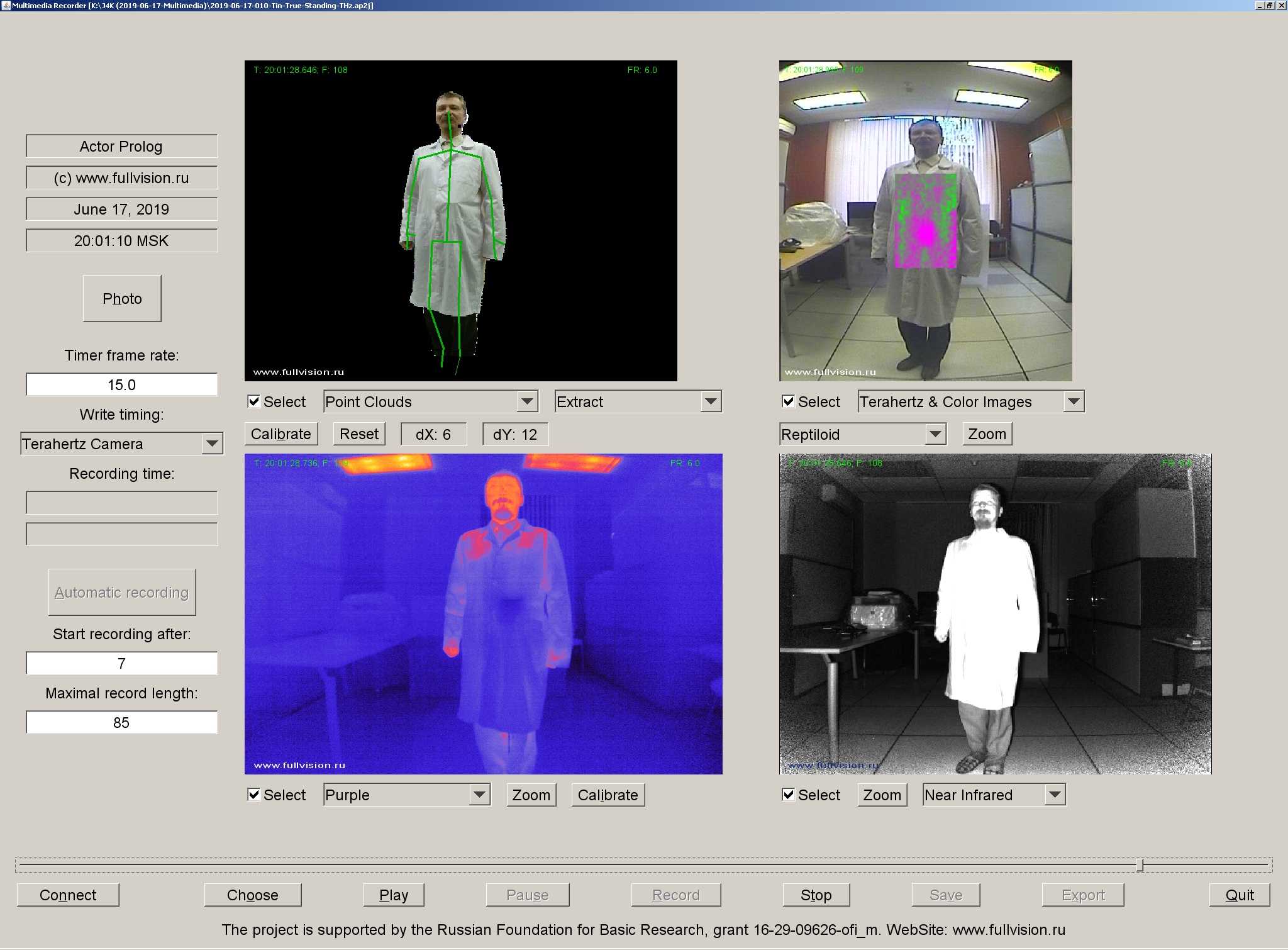

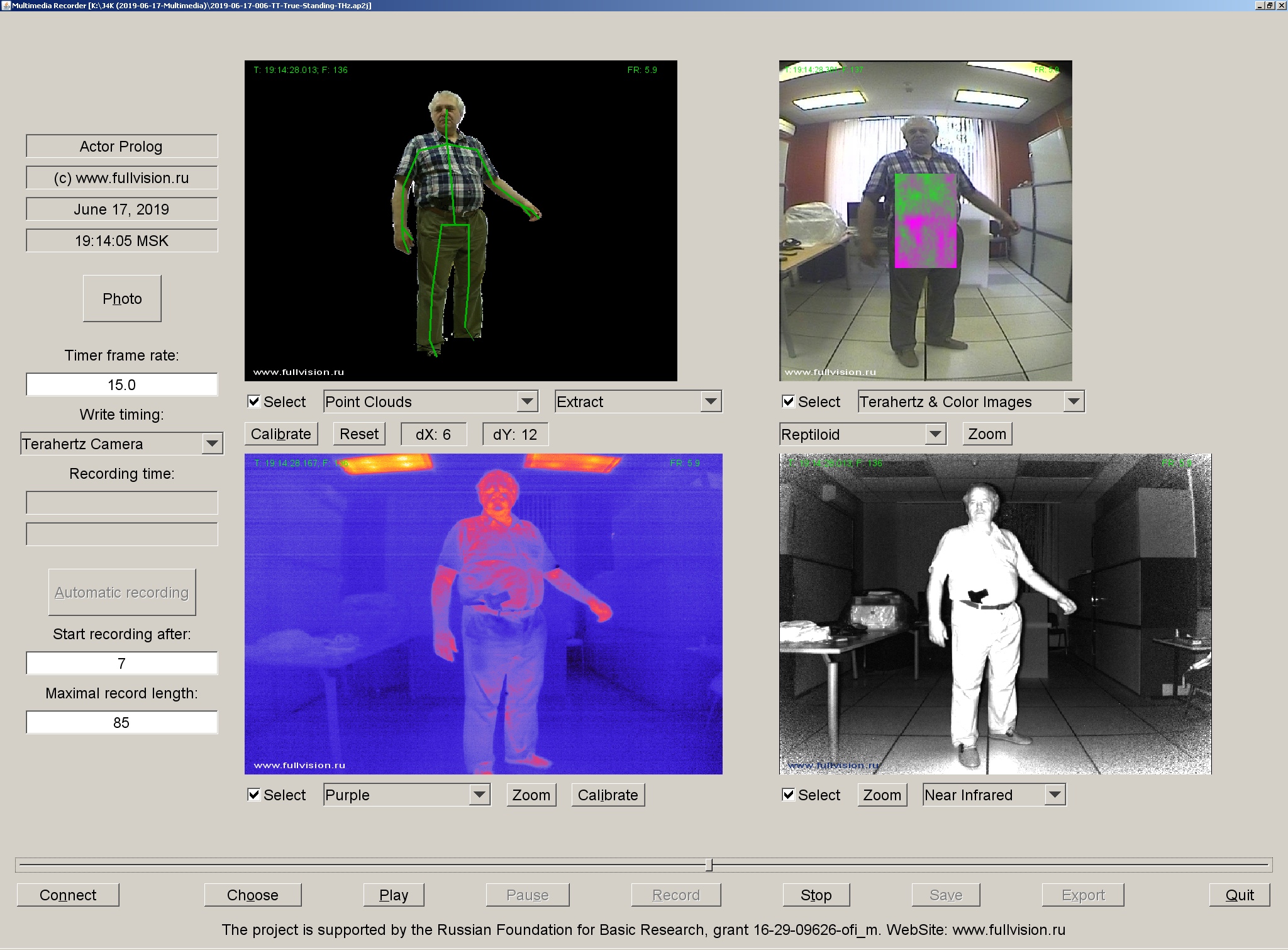

  • Multimedia_01_recorder_12 – this is the logic program for recording and reading of multichannel video data. You can use it for viewing the AP2J files published on this Web page.

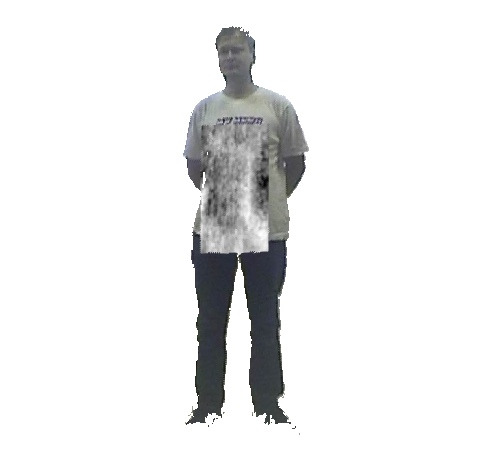

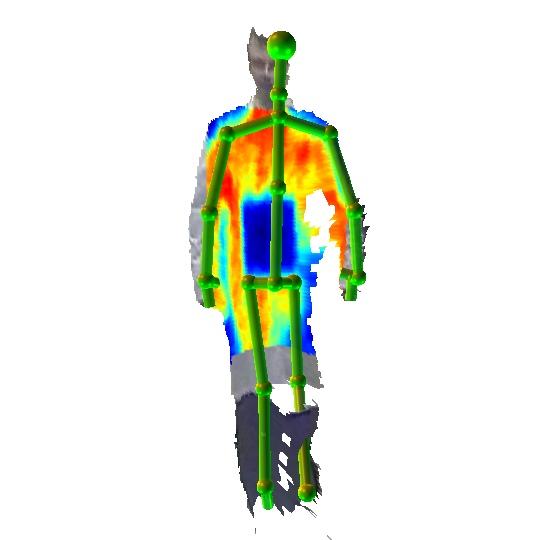

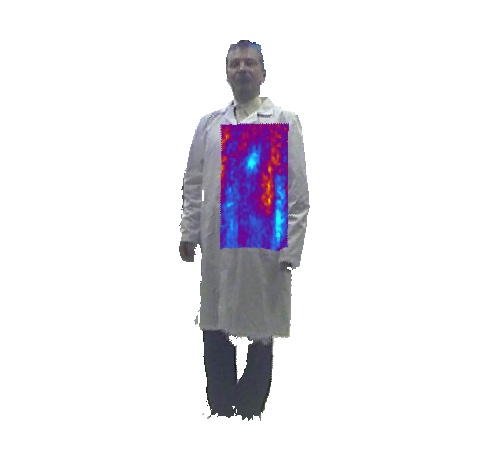

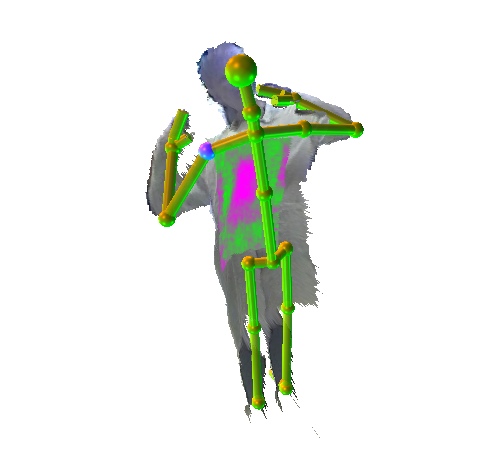

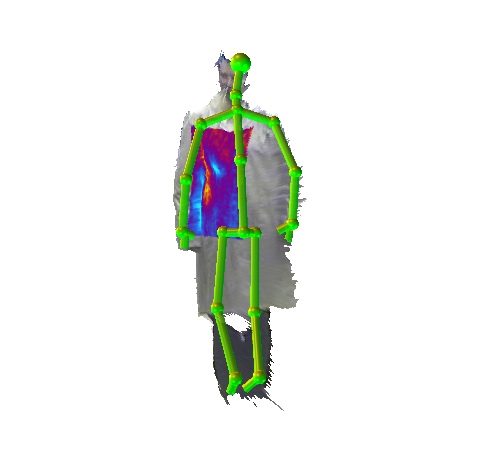

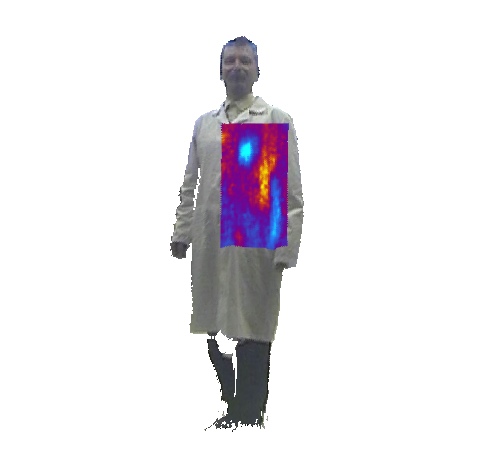

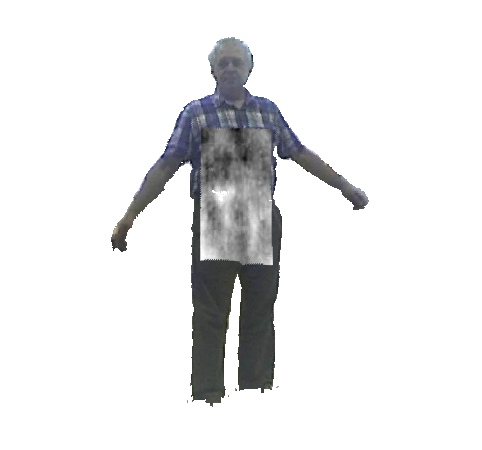

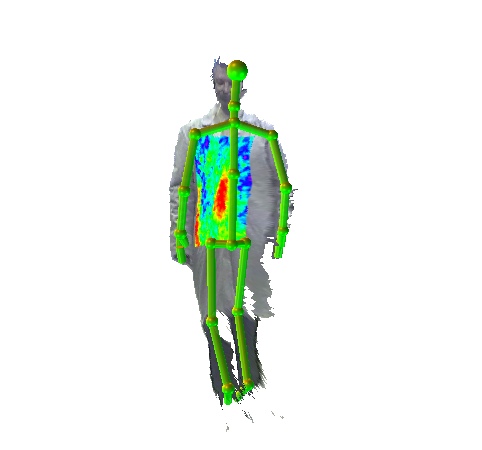

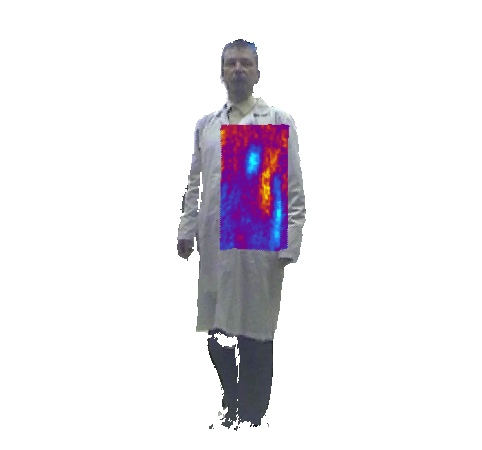

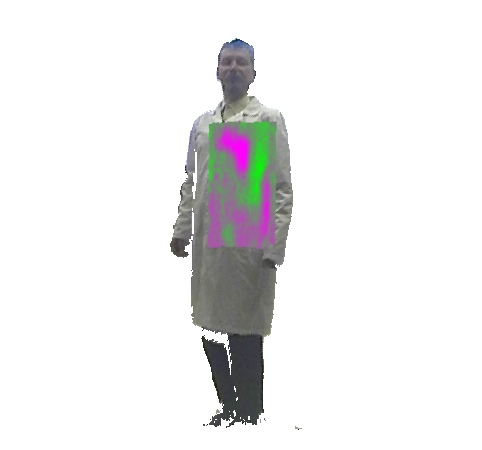

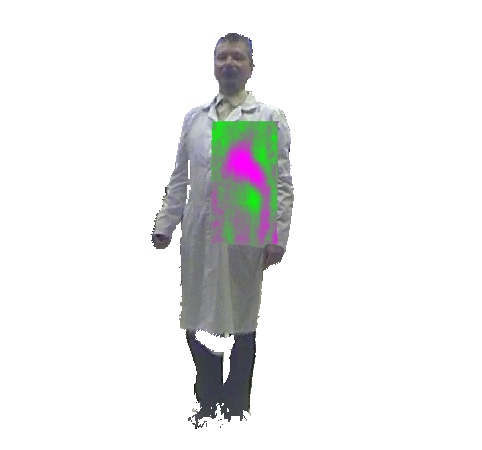

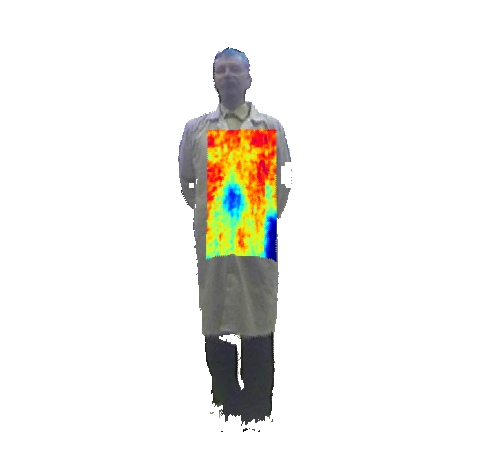

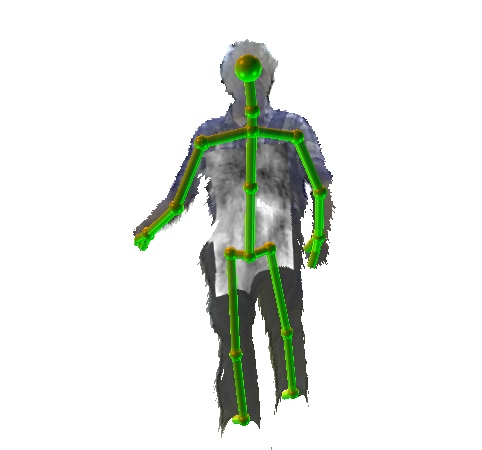

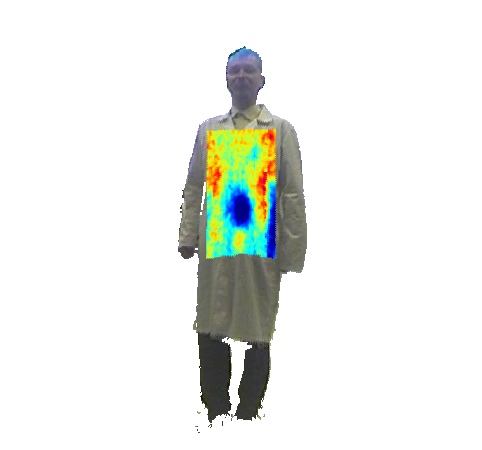

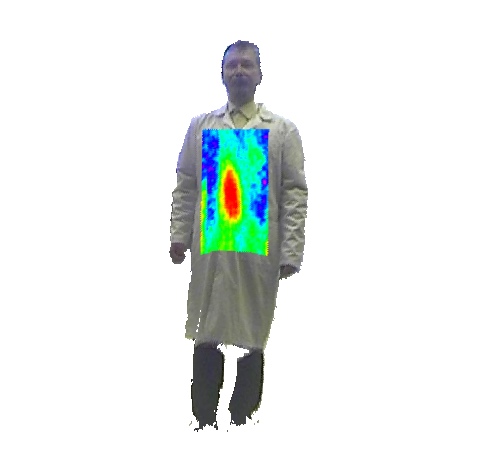

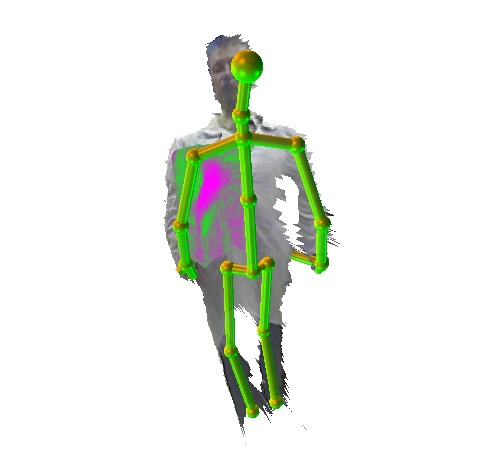

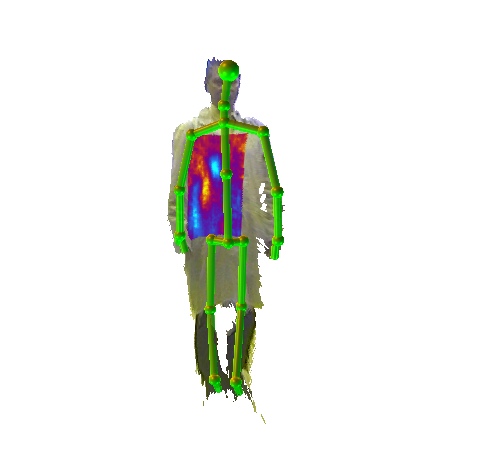

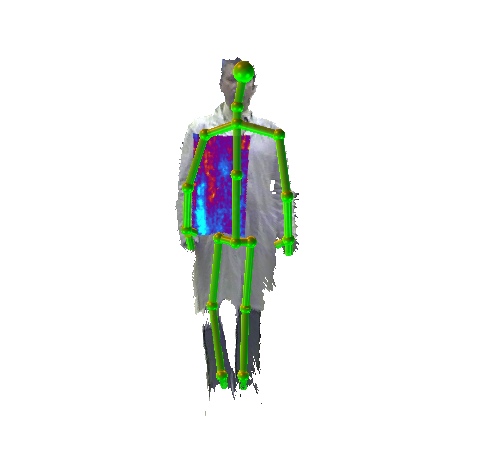

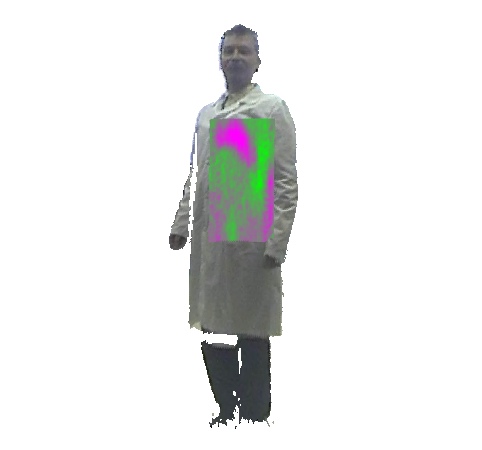

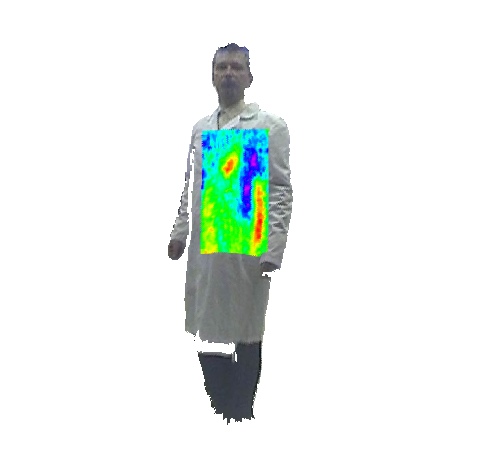

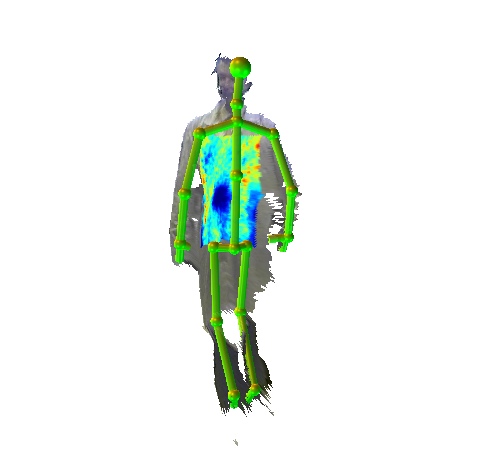

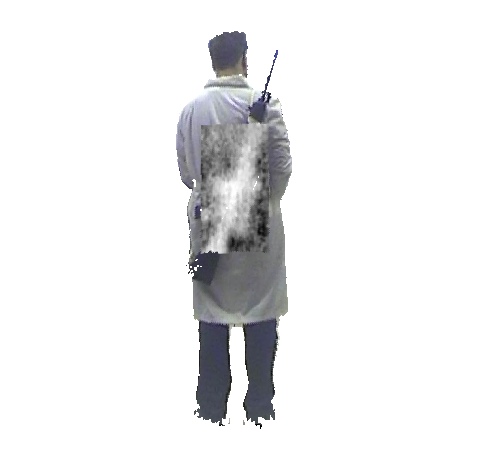

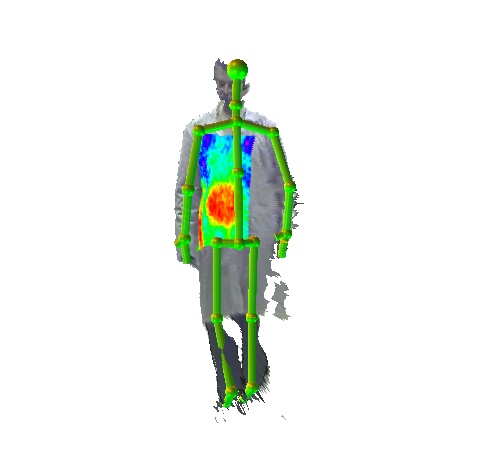

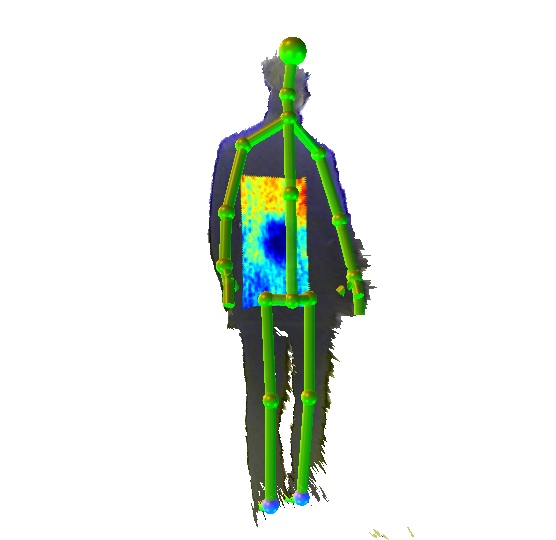

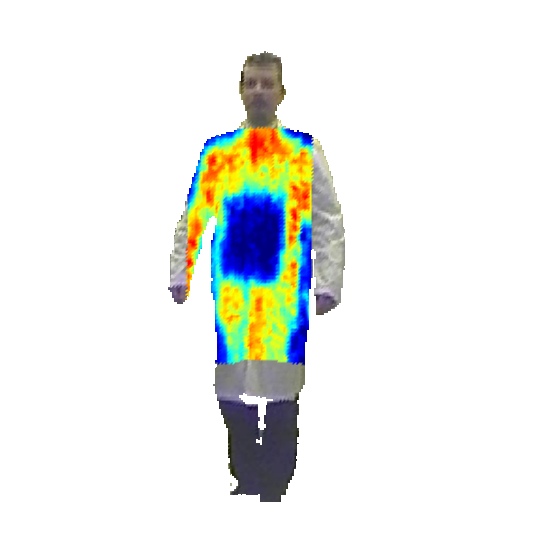

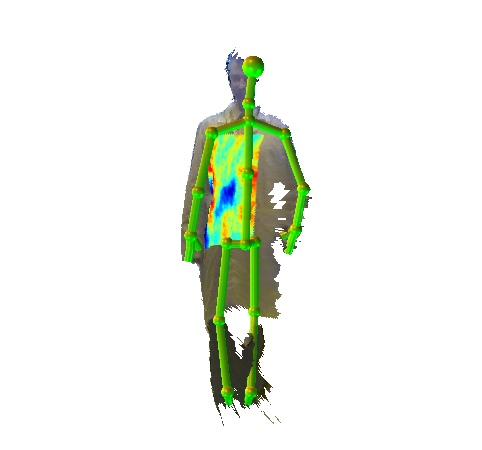

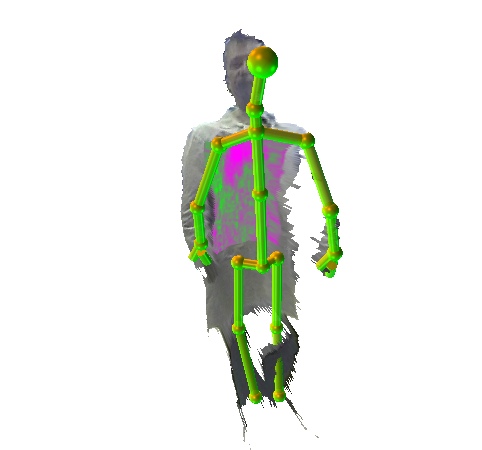

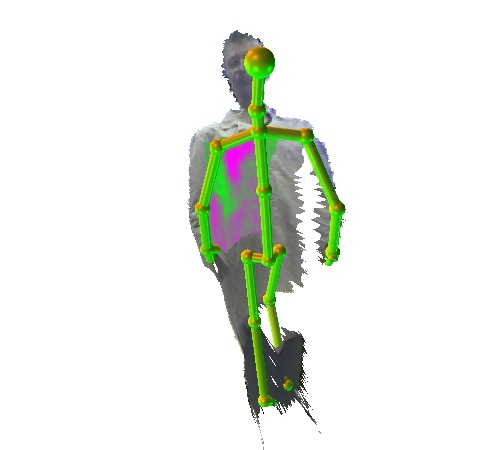

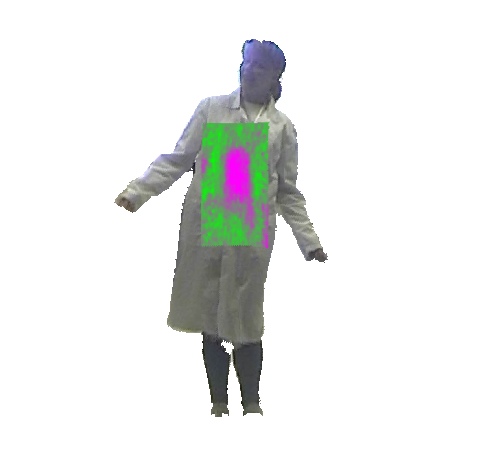

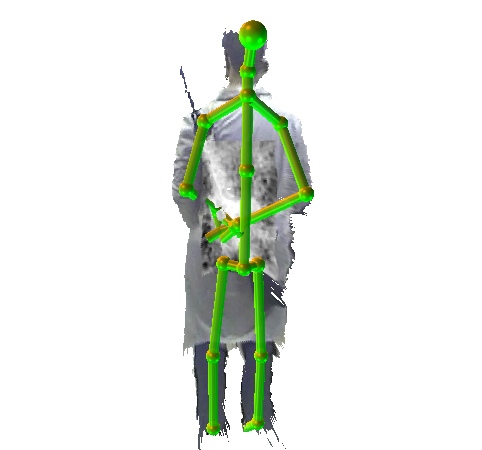

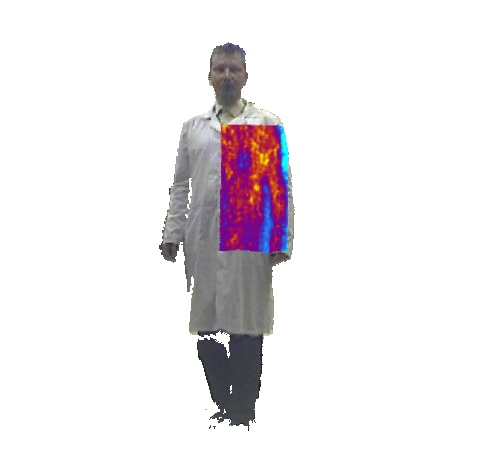

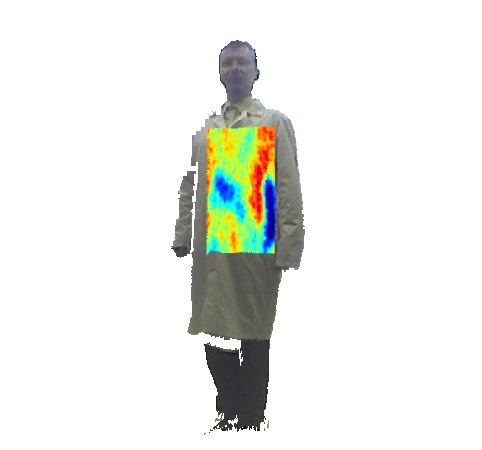

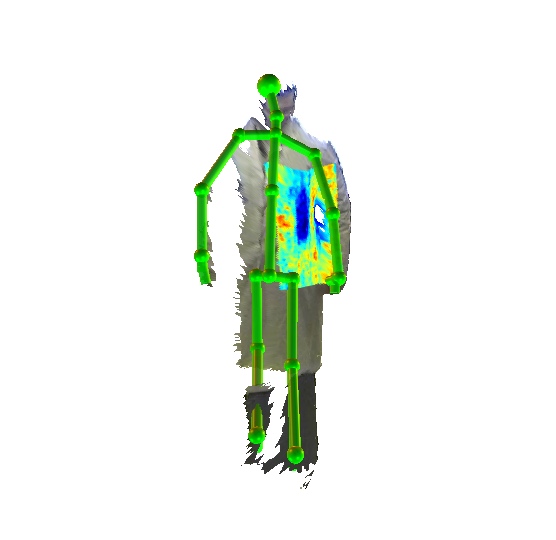

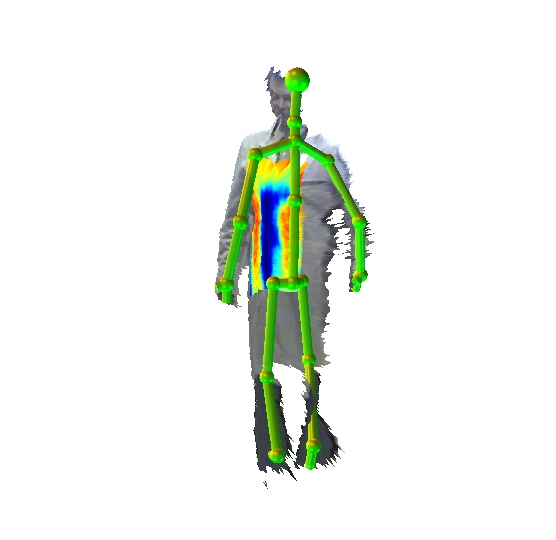

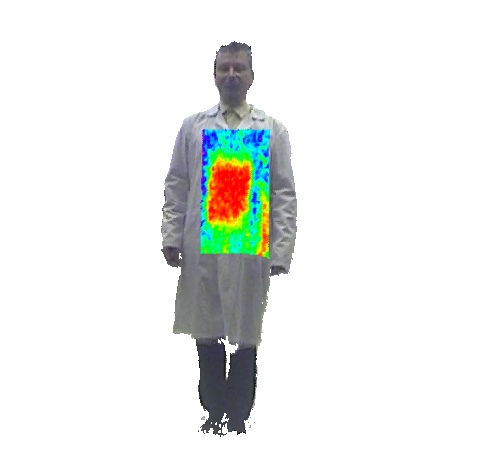

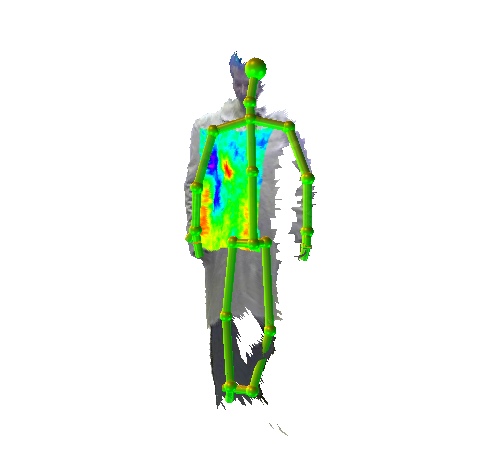

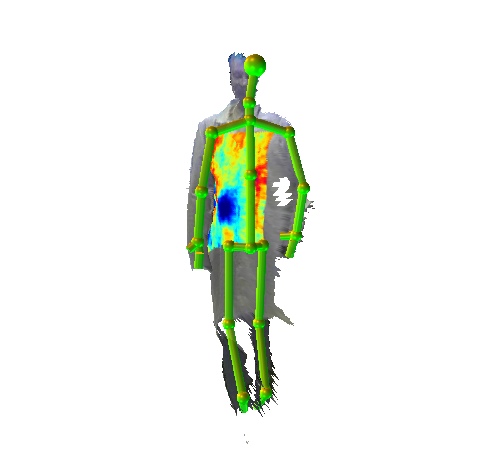

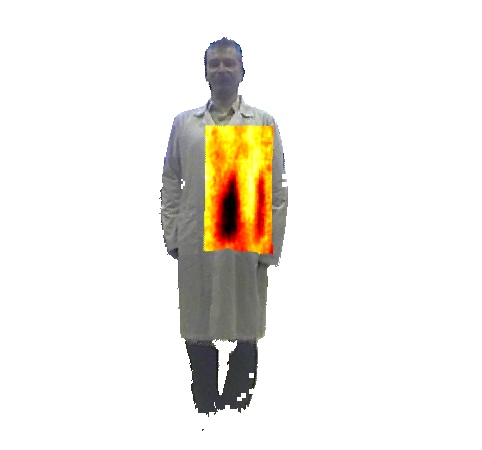

  • Multimedia_02_3D_viewer_02 – this logic program reads the multichannel video data and implements a kind of video data fusion: the THz/infrared data are projected to 3D surfaces. This program uses the 3D lookup tables provided along with the AP2J files.

  • Multimedia_04_3D_normalize_video_03 – this logic program implements the same data fusion operations and records PNG frames ready for use in experiments with machine learning methods.

    • 3. Please study examples of logic programs that are provided in the installation pack. Note that the Actor Prolog system can interpret logic programs and/or compile them to Windows EXE-code and Java, but major logic programs require compilation to Java. Thus, you should install JDK7 (or later version of the Java Development Kit) on your computer to execute examples of Java3D graphics (see the "Demo Programs / Java3D" directory), examples of intelligent visual surveillance (see the "Demo Programs / Vision" directory), etc. A brief instruction on JDK installation is provided in the Software section of this Web Site.

    4. Please download the THz and thermal video files listed in the tables on this Web page. These data files are in the AP2J format that is developed for the Actor Prolog system. Please note that these data files are accompanied by 3D lookup tables in TXT format. Please download these 3D lookup tables and place them in the same directory where the AP2J files are situated. The lookup tables are used automatically by the logic programs for THz video data processing indicated above.

    5. Please study logic program examples that implement THz/thermal video processing. If you have no experience in the Prolog language, you can use the ready-to-use examples of logic programs for data reading and preprocessing. But you could modify these programs if necessary.

    6. You can develop your own logical rules implementing intelligent visual surveillance. You can develop also you own video processing methods and build in them into the Actor Prolog system for rapid testing/evaluation. The simplest way to do this is in implementing your algorithms in Java in the form of a predefined class of Actor Prolog. See source codes of Actor Prolog predefined classes for implementation details. Publish your source codes on GitHub!

    7. You can participate in the development of the Actor Prolog compiler and programming system. Please get in touch with us if you are a logic programming developer and are interested in participating in the research.

    Please do not hesitate to e-mail and ask questions, especially if you are not familiar with the logic programming framework and need additional help.

    THz and thermal video data set

    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt


    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz THz and thermal video data set, Thermal imaging, Terahertz images, THz, Terahertz          Download
    1. LookUpTable_K2_TEV1.txt

    2. LookUpTable_K2_THz.txt
